ViCare Climate Sensor: Teaching process

Step 1. Remove the ViCare Climate Sensor from the wall.

Step 2. Open the ViCare application and enter the Smart Room Control on Settings list.

Step 3. Follow the instructions in the application: Addind the ViCare Climate Sensor.

Step 4. Scan the QR code on the ViCare Climate Sensor.

Step 5. The teaching process. Confirm the learning process by briefly clicking on the control button C (for less than 2 seconds). The learning process can take up to 3 minutes. During this time, the LED will flash green. If the teaching process is successful, the status LED lights up green for about 5 seconds. The ViCare app will also display information about the successful connection.

Step 6. Replace the ViCare Climate Sensor on the wall.

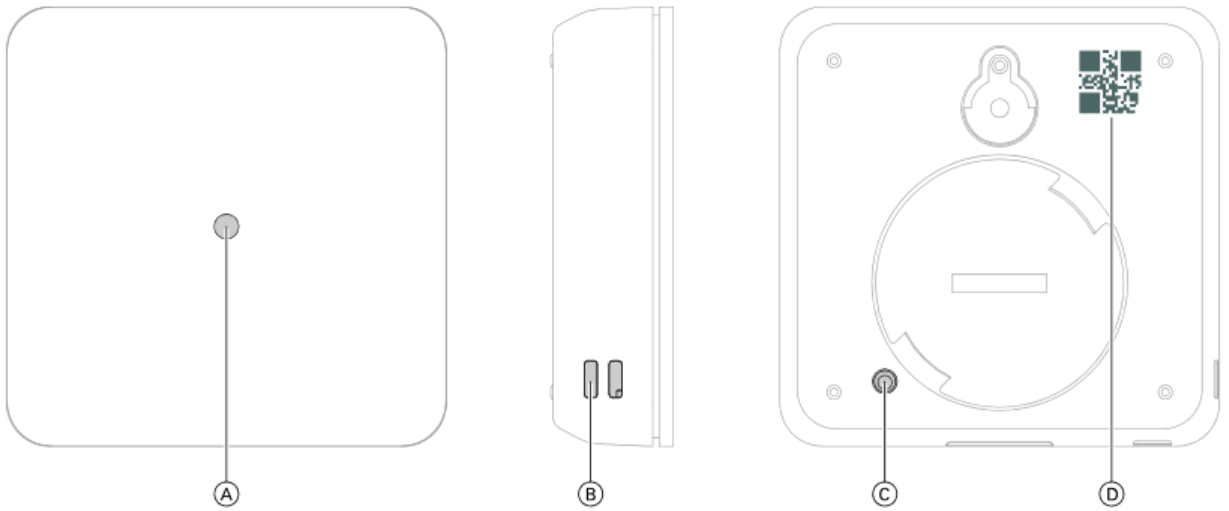

A   Status LED
B   This is where the temperature and humidity measurement is taking place. Do not cover!
C   Control button
D   QR code
